Savöx SB-2273SG+ HV (0.085s/35.0kg/8.4V) Brushless Servo
Kód: SB2273SGDetailní popis produktu

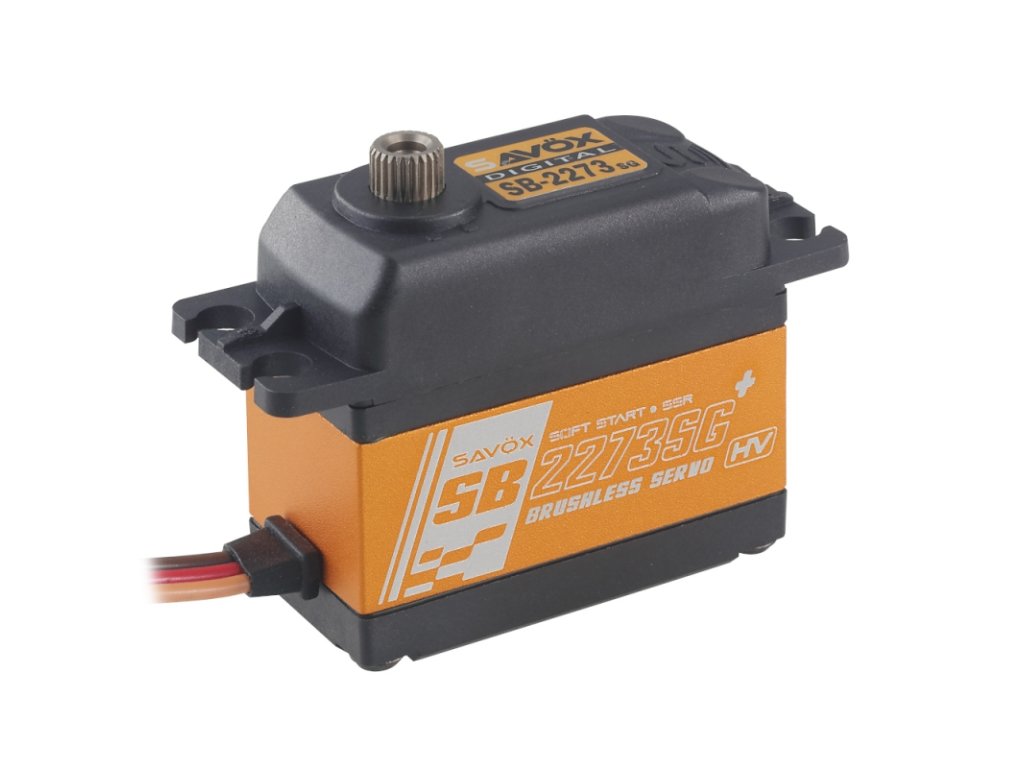

This is the Savox SB-2273SG+ Monster Torque Brushless Steel Gear Digital Servo which combines leading edge technology with super high 12 bit (4096) resolution.
Features:
- Extremely strong unique steel gears ensure long-life and durability.
- Capable of HV operation.
- Brushless motor for smooth operation and efficiency.
- Ideal for 1/8 buggies and large scale aircraft.
- NEW: SSR mode compatible
- NEW: SOFT START
Specifications:
| Torque | 6V - 23.0kg 7.4V - 28.0kg 8.4V - 35.0kg |
| Speed | 6V - 0.12 sec/60 deg 7.4V - 0.095 sec/60 deg 8.4V - 0.085 sec/60 deg |
| Dimensions L x W x H (mm) | 40.3 x 20.2 x 38.7 |
| Weight |
69.0g |
Technical Details:
- Operating Temperature: (-10° - 50°C)
- Running Current (no load): 180mA @6.0V, 220mA @7.4V
- Stall Current (at locked): 6000mA @6.0V, 7400mA @7.4V
- Idle Current: 5mA @6.0V, 5mA @7.4V
- Wire Length: 300 +/- 5mm
- Output Gear Spline: 25 Tooth
- Bearings: 2BB
- Operating Travel: 100° (1000 → 2000 µ second)
- Neutral Position: 1500 µ second
- Pulse Width Range: 800 → 2200 µ second
- Maximum Travel: Appx 130° (900 → 2100 µ second)
- Refresh Rate: 333 Hz
- Motor Type: Brushless
